What’s Sanmover® Shuttle Pallet?

Introduction

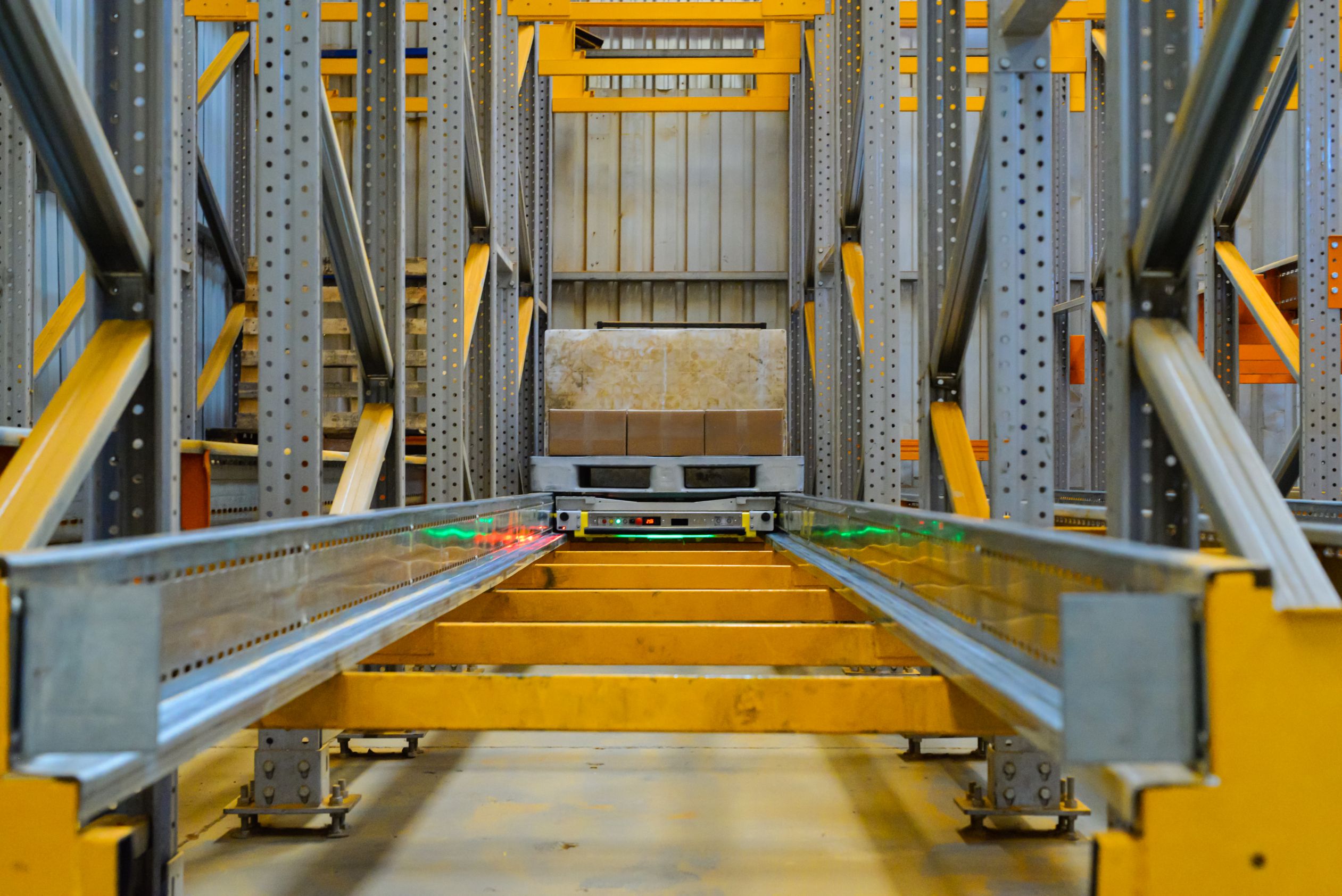

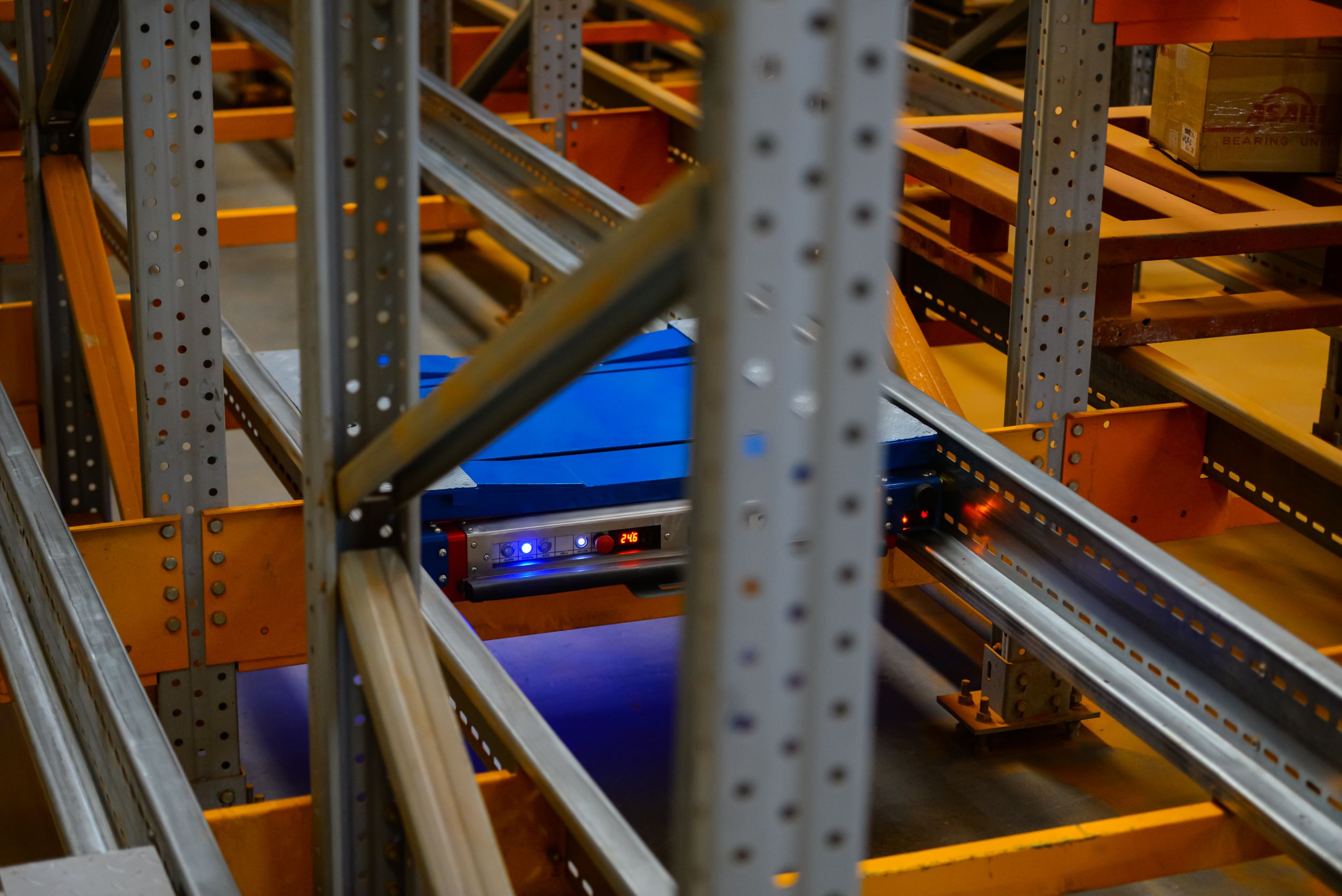

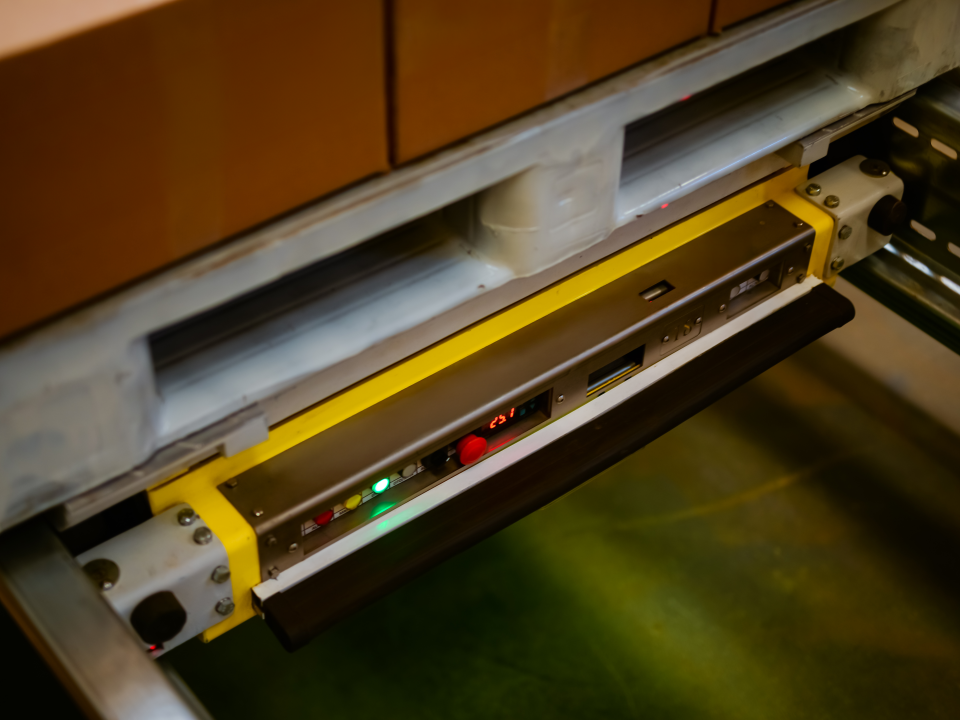

Sanmover® Shuttle Pallet is Semi-automated storage solution for lane-based storage, which combined Drive-in, Pushback, and Live Storage systems in one.

The Shuttle Pallet is remotely controlled by user and moved from one storage lane to another by forklift operator.

It moves goods independently through the lane manually or automatically optimizing storage, loading, and unloading stages.

Sanmover® Shuttle Pallet maximizes warehouse space eliminating aisles between pallets with a greater turnover rate. It provides high density storage and increases operational efficiency.

Advantages

  • Minimum space Maximum Storage capacity
  • It can work either as LIFO or as FIFO storing system, which is efficient alternative to Flow Racking, Pushback, and Drive-in Racking systems
  • No risk of damage to the handling equipment or racks
  • Removes the need for specialist forklift trucks
  • Reduce number of forklifts and forklift operators, and reduce operating cost
  • Working at -30°C / +50°C temperature environment at the same time
  • Is able to store pallets with 800mm, 1000mm, 1200mm depth by the same Shuttle machine
  • High operating Speed
  • Maximum carrying capacity 1500kg

Features the key

Features of Sanmover® Shuttle Pallet

Features of Sanmover® Shuttle Pallet

Length : 1150mm
Width : 975mm
Height : 175mm
Device weight : 320kg
Device Noice Level : ≤ 80db
Pallet Lift Height : +40mm

Stored Pallet dimensions

Width : 1200mm
Depth : 800mm, 1000mm, 1200mm
Load weight : 1500kg
Pallet Quality : Europalet Quality Standard

Performance Information The smartest

electric
Maximum Capacity : 1500 kg
Pallet size: 800 / 100 / 1200mm x 1200mm
Standart space between pallets : 50mm (adjustable)
Speed without load : 75m / min
Speed with load : 60m / min
Lifting speed : 4 sec

Company Profile SANMOVER®

Company Mission

Our mission is to develop high-quality solutions that positively impact our customer’s success and profitability with skilled, knowledgeable, professional R&D team.

About Us

Sanmover ®  Industrial technology Company has been designing, manufacturing, and marketing semi-automated storage solutions since 2010. During this period Sanmover ® gained many “firsts” in the industry, introducing Sanmover ® Radio-Shuttle Pallet device to potential customers all over the world.

Company Vision

If our product provided improve workflow efficiency and reduce operations cost through time savings and reduction of user error to the customer, this is our most important Success!

Sanmover® Shuttle Pallet

Grow Up by Moving Fast

More information

Special Designed Racking Parts

Pallet Guidance

Stopper

Pallet Rail

Rail Carrier

Pallet Rail
